Designed for advanced PCB factories and processes

Product System

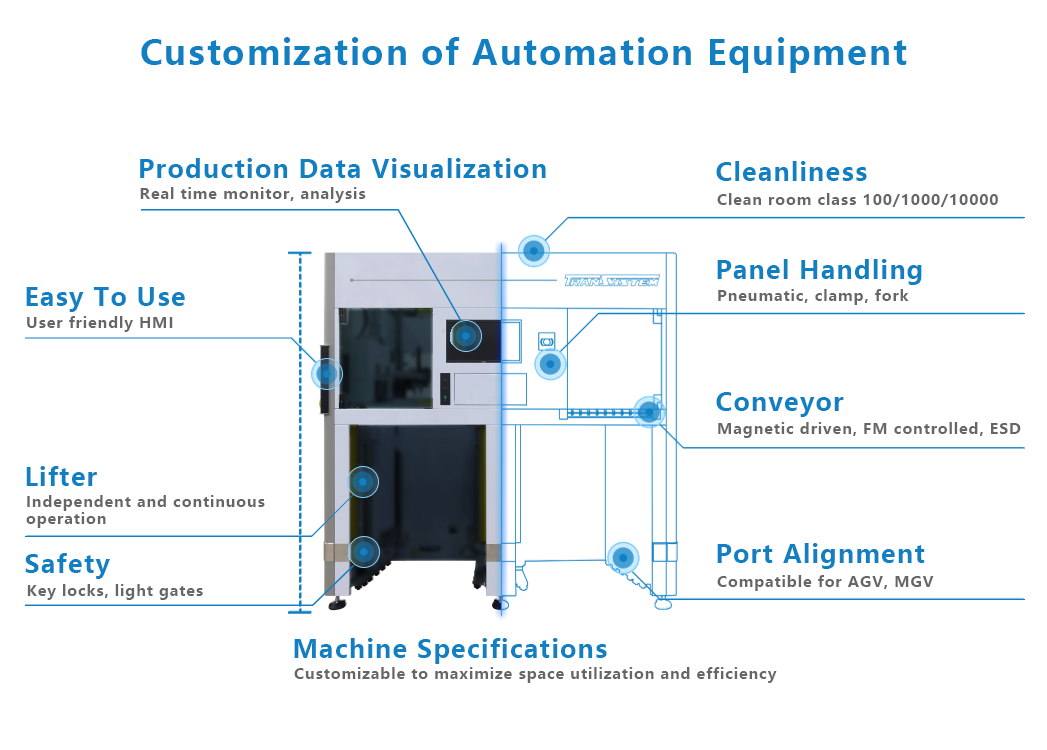

Innovative Technology, Smart Production

Our latest loading/unloading machine series is faster, cleaner, more ac curate and maximized to meet production efficiency. It has also in built MES communicaαtion capability for data acquisition.

Magazine

Basket

L Rack

Box

Tray

Magazine Loader/Unloader

1）Panel handling: fork type, pick/place panels at desired position

2）Capability: 2 ports (24 panels/magazine, customizable), continuous operation

3）FM control: sealed covers and minimum internal air disruption

4）ESD: material in contact with PCB compliant with ESD

5）Transport method: AGV, MGV compatible

6）Real time monitoring: video monitoring, alarm triggered video recording, data

acquisition

7）Traceability: Lot management, panel traceability

8）Communication: SECS GEM/Web Service/ OPC UA

9）SLC, EAP compatible: data acquisition and analysis.

Basket Loader Unloader

1）Panel handling: clamp type, auto adjust to various panel sizes

2）Capability: 2 ports, 1in/1 out (30 panels/basket, customizable), continuous operation≤

3）FM control: covered and less dust generation

4）ESD: material in contact with PCB compliant with ESD

5）Transport method: AGV, MGV compatible

6）Real time monitoring: video monitoring, alarm triggered video recording, da‍ta

acquisition

7）Traceability: Lot management, panel traceability

8）Communication: SECS GEM/Web Service/ OPC UA

9）SLC, EAP compatible: data acquisition and analysis

10）Process customization: design to suit various process such as DESMEAR, ELESS,

ENEPIG etc.

L Rack Loader Unloader

1）Panel handling: pneumatic type, auto adjust to va∑rious panel sizes

2）Capability: 2 ports, continuous operation

3）FM control: covered and less dust generation

4）ESD: material in contact with PCB compliant with ESD

5）Transport method: AGV, MGV compatible

6）Real time monitoring: video monitoring, alarm triggere☆d video recording, data

acquisition

7）Traceability: Lot management, panel traceability

8）Communication: SECS GEM/Web Service/ OPC UA

9）SLC, EAP compatible: data acquisition and analysis.

Box Loader Unloader

1）Panel handling: pneumatic type, auto adjust to various panel sizes

2）Capability: 2 ports, box storage buffer, continuous operation

3）FM control: covered and less dust generation

4）ESD: material in contact with PCB compliant with ESD

5）Transport method: AGV, MGV compatible

6）Real time monitoring: video monitoring, alarm triggered vi<deo recording, data

acquisition

7）Traceability: Lot management, panel traceability

8）Communication: SECS GEM/Web Service/ OPC UA

9）SLC, EAP compatible: data acquisition and analysis∑.

Tray Loader Unloader

1）Panel handling: pneumatic or clamp type, auto adju‍st to various panel sizes

2）Capability: 2 ports, tray storage buffer, continuous operation

3）FM control: covered and less dust generation

4）ESD: material in contact with PCB compliant with ES'D

5）Transport method: AGV, MGV compatible

acquisition

7）Traceability: Lot management, panel traceability

8）Communication: SECS GEM/Web Service/ OPC UA

9）SLC, EAP compatible: data acquisition and analys$is.
